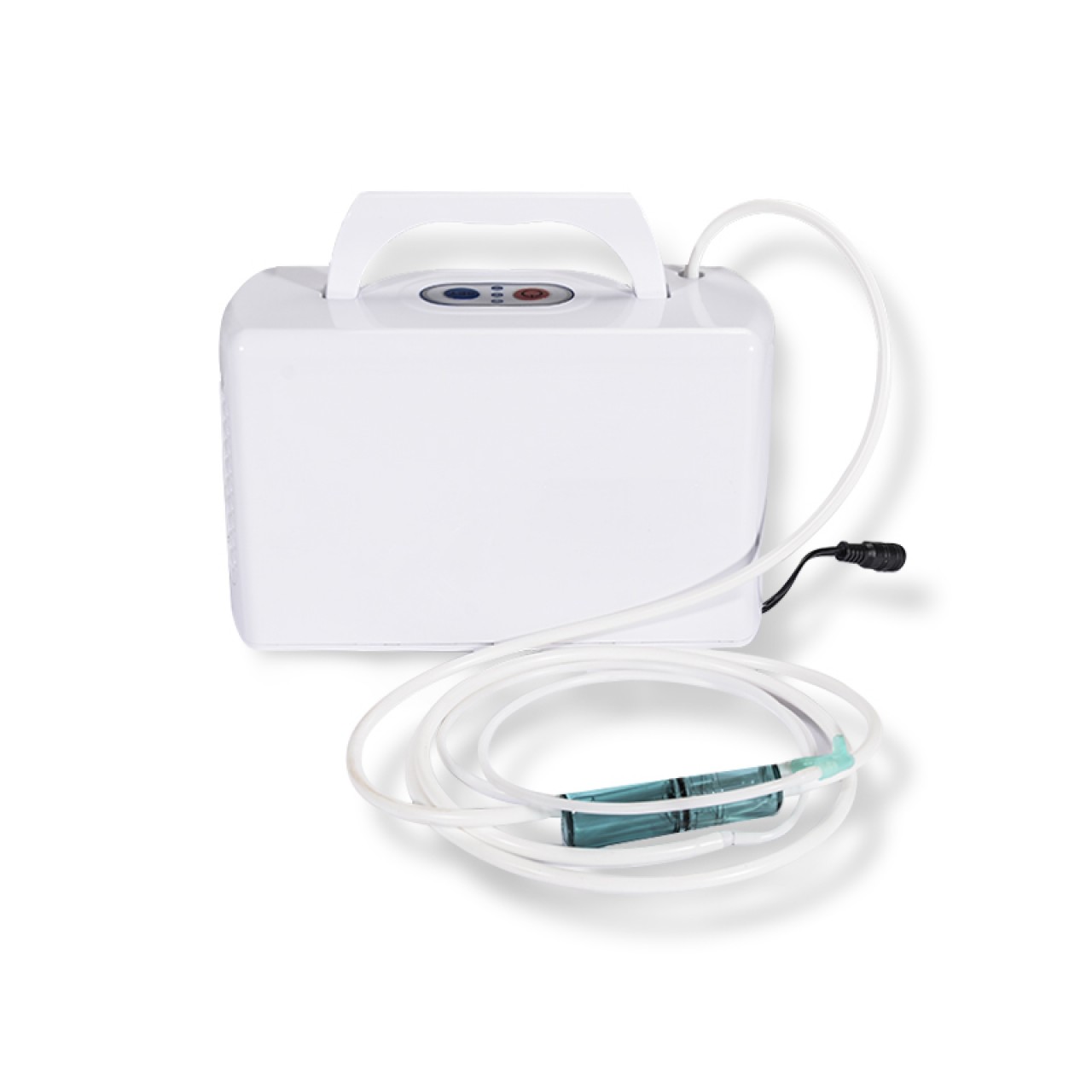

Portable Oxygen Concentrator Generator
Functions
1. Mechanical Principles
This machine incorporates physical mechanism to generate and supply rich oxygen of 29+/-2% concentration by the means of vacuum pump and macromolecules.

2. Application
Ambient temperature: 5~40℃    Humidity: below 90%RH

3. Storage
Ambient temperature: 0~40℃    Humidity: below 80%RH

4.Control Button

Caution: This appliance should be kept away from dusts and oil vapor. If the appliance is operated in an area where temperature and humidity values are beyond required degree, or altitude is high, oxygen concentration and air flow might be affected.

Technical Information

Airflow outlet: Approx 3+/-1.5L/min(standard atmospheric pressure)
Concentration: 28%+/-2%( standard atmospheric pressure)
Size: 260(L)X110(W)X170(H)
Wight: Generating unit: adapter       2.0KG
Generating unit + adapter + lithium battery (15V, 4A) +charger     2.4KG
Power Consumption: average below 32W
Rated Voltage: AC 100-240V 50-60HZ or DC 12-15V
Noise: below 50dB

Packing list

1 x Main oxygen concentrator
1 x Power adapter
1 x Carry Bag
1 x Extender tube with vaporizer capsule
1 x English Manual
1 x Rechargeable Lithium Battery
1 x Lithium Battery charger
1 x Nasal Cannula
1 x Power Cord
1 x Car Charger

Technical Details:
